Create Android Native Menu in Phonegap

Here is the step to create native android menu in phonegap.

Step 1 : Add the code in your activity class file
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}

It looks like as follows
public class MainActivity extends DroidGap {
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
super.loadUrl("file:///android_asset/www/index.html");
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
}

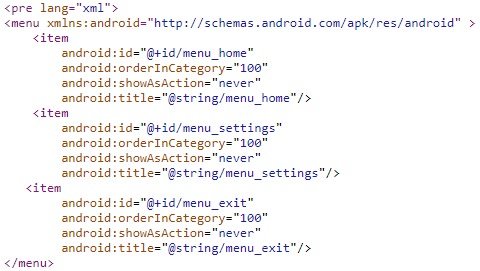

Step 2 : Now create an activity_main.xml file in “res/menu/” folder

Add the following code in it.

Step 3 : Now define the strings in the strings.xml file at “res/values/” location

Step 4 : Also define the ids and string in R.java file at “gen/com.example.testapp/”, normally the ids and all other variables will be automatically added to R.java file, so you only needed to add it manually if shows error.


public final class R {
public static final class attr {
}
public static final class drawable {
public static final int ic_launcher=0x7f020000;
}
public static final class id {
public static final int menu_exit=0x7f080003;
public static final int menu_home=0x7f080001;
public static final int menu_settings=0x7f080002;
}
public static final class layout {
public static final int activity_main=0x7f030000;
}
public static final class menu {
public static final int activity_main=0x7f070000;
}
public static final class string {
public static final int app_name=0x7f050000;
public static final int hello_world=0x7f050001;
public static final int menu_exit=0x7f050005;
public static final int menu_home=0x7f050004;
public static final int menu_settings=0x7f050002;

public static final int really_quit=0x7f050007;
}
}

Step 5: Now add code in your main activity so that the menu action to be done when clicking them.


@Override
public boolean onOptionsItemSelected(MenuItem item) {
// Handle item selection
switch (item.getItemId()) {
case R.id.menu_home:
////code to be executed
return true;
case R.id.menu_settings:
////code to be executed
return true;
case R.id.menu_exit:
////code to be executed
return true;
default:
return super.onOptionsItemSelected(item);
}
}

Now it looks like this


public class MainActivity extends DroidGap {
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
super.loadUrl("file:///android_asset/www/index.html");
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}

public boolean onOptionsItemSelected(MenuItem item) {
// Handle item selection
switch (item.getItemId()) {
case R.id.menu_home:
////code to be executed
return true;
case R.id.menu_settings:
////code to be executed
return true;
case R.id.menu_exit:
////code to be executed
return true;
default:
return super.onOptionsItemSelected(item);
}
}
}

Now it works !!!
